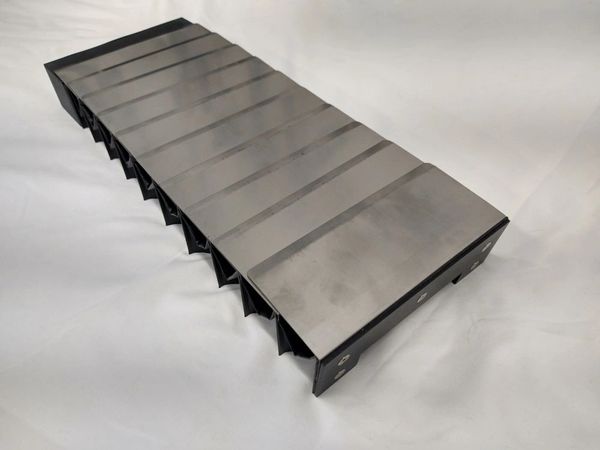

G0704 Z Axis Stainless Steel Clad Bellows
G0704 Z Axis Stainless Steel Clad Bellows Cover
This new product listing is a great upgrade to a modified G0704 especially one with an enclosure and coolant. it is thicker than the stock bellows and is recommended to be used with our Deluxe Spindle upgrade kit which offers the Y axis travels to work best with this product. using on a stock un-spaced column machine you will loose some Y travel, ~0.250". The bellows stainless steel face protrudes 0.200" forward of the Z axis Saddle face for reference, please ensure this is acceptable on your machine configuration before ordering!
Holes for mounting are not provided and are the users responsibility. Magnets are provided for mounting on machines primarily machining aluminum or plastics but steel chips could be an issue with magnetic mounting. please be aware!
